As Exchange server 2010 is a new version of exchange and also it is also new to us , we will discuss today the installation steps of exchange 2010 .
Exchange 2010 is still in Beta version so I think it is a good idea to start now installing this new product and see how it works and what what are the new features inside it and and enhancements before it is released as RTM version to the Market.
This post is about a simple fresh installation for exchange 2010 on a single machine in a new environment.
Ok, let's go ahead and start installing it .
My Lab Setup :
1- one server acting as domain controller with Windows 2008 server installed , I will call it dc1.test.com.
2- one server that I will use exchange 2010 installation with windows 2008 server 64 bit edition installed , I will call it mail.test.com.
Exchange 2010 Minimum System Requirements :
1- PC\Server - based computer with Intel processor that supports Intel 64 architecture or AMD processor that supports the AMD64 platform as exchange 2010 comes only in 64 bit edition
2- Operating system - Windows 2008 standard x64 or Enterprise x64 edition with SP2
3- Memory - Varies depending on Exchange features that are installed.-, but for testing purposes 2GB memory will be enough .
I will post another post on how to size hardware for you exchange 2010 installation.
4- Network And Directory Services :
1. Schema master (By default, the schema master runs on the first domain controller installed in a forest.) - The latest 32-bit or 64-bit edition of the Windows Server 2003 Standard or Enterprise operating system or the latest 32-bit or 64-bit edition of the Windows Server 2008 Standard or Enterprise operating system.
2. Global catalog server - In every Active Directory site where you plan to install Exchange 2010 you must have at least one global catalog server that is either the latest 32-bit or 64-bit edition of Windows Server 2003 Standard or Enterprise or the latest 32-bit or 64-bit edition of Windows Server 2008 Standard or Enterprise.

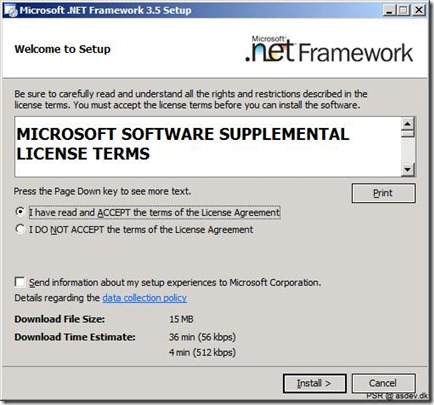

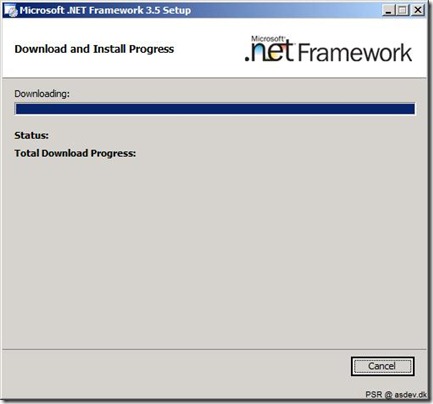

5- Install Microsoft .NET framework 3.5 on server you will use as exchange server

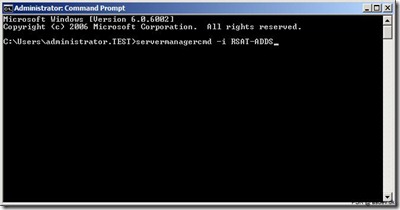

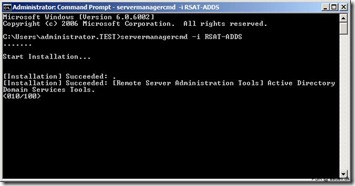

6-Install the Active Directory remote management tools by running the following command:
ServerManagerCmd -i RSAT-ADDS

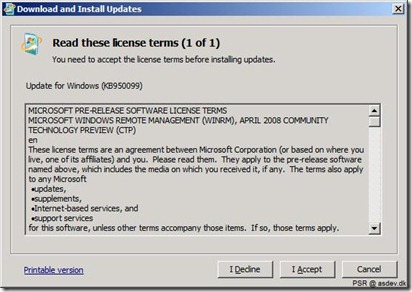

7- Install Windows Remote management (WinRM) 2.0 community technology preview 3.0 from the following link :
https://connect.microsoft.com/WSMAN/Downloads

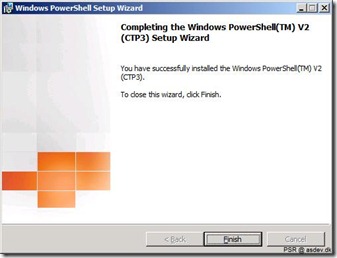

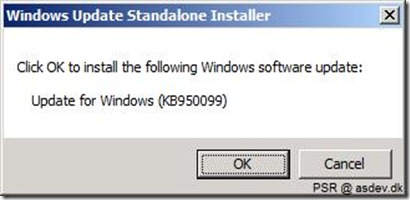

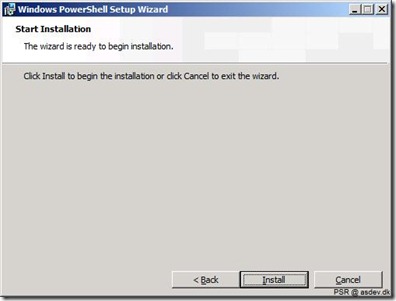

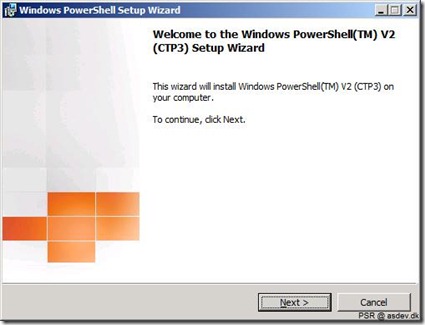

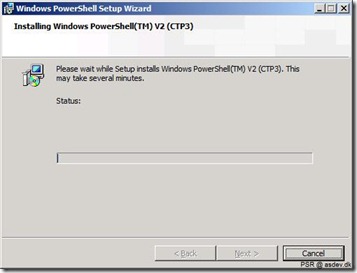

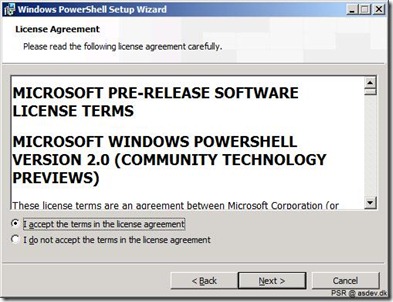

8- Install windows power shell V2 CPT3 from the following link :

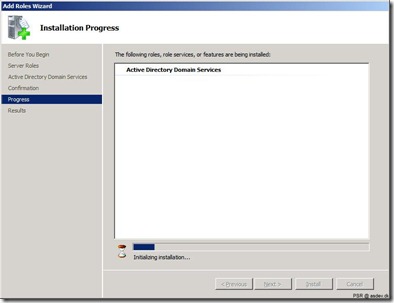

Install Active Directory management tools on the exchange server
open server manager and click on add role and then add the active directory domain services

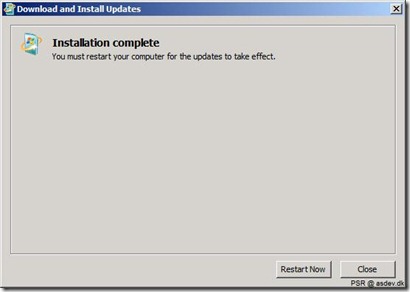

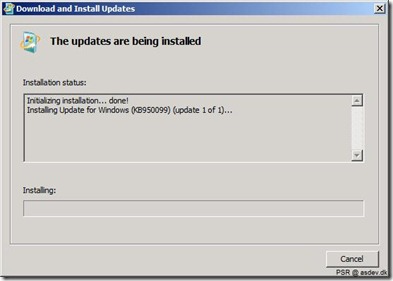

9- Install the update for the Microsoft Management Console (MMC) in Windows Server 2008. See Microsoft Knowledge Base article 951725 from the following link :
http://support.microsoft.com/?kbid=951725

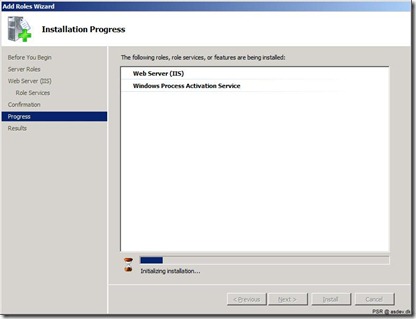

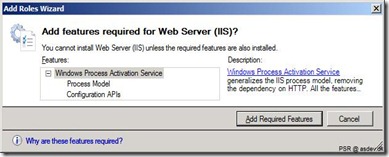

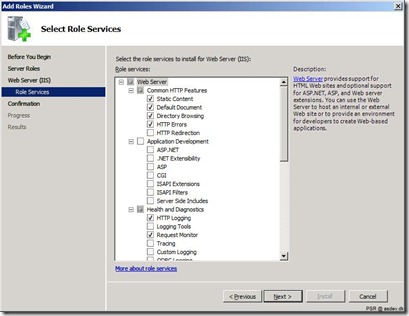

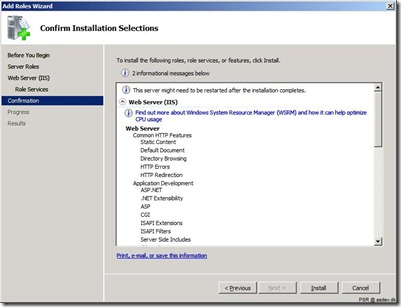

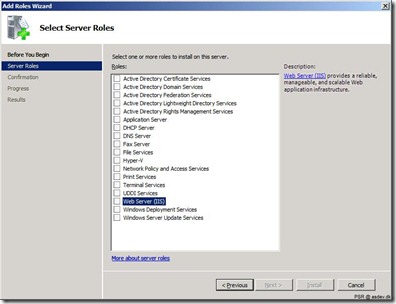

10- Install all IIS services on the server that you will use as exchange server from the add role section in the sever manager console as shown below
Note: you must select all the components and services inside the IIS as shown below

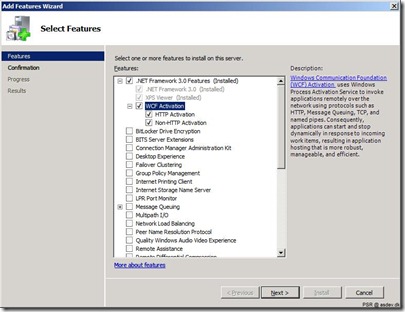

Also you need to install the HTTP Activation feature from the add feature section in the server manger console as shown below

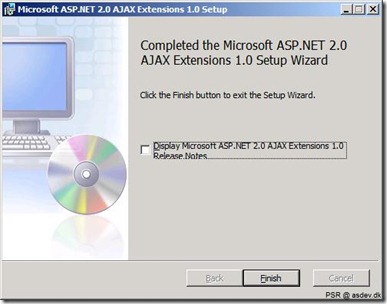

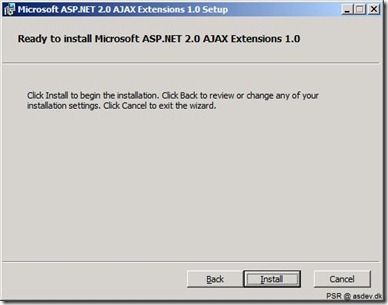

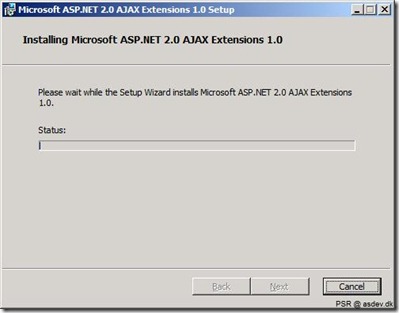

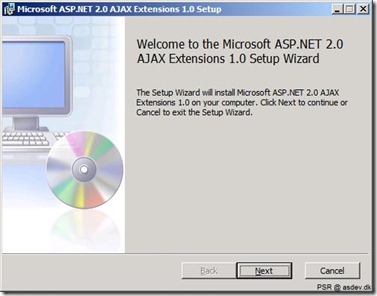

11- Install the extensions for ASP.NET AJAX 1.0 from the following link :

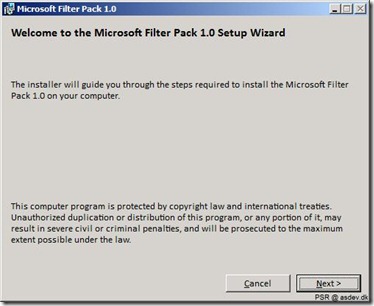

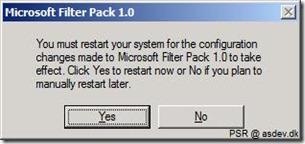

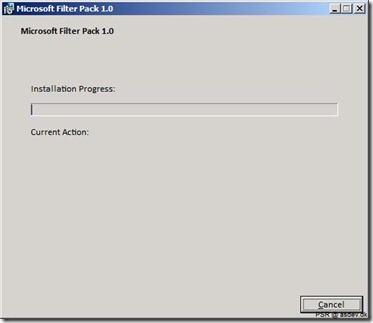

12- Install the 2007 Office System Converter: Microsoft Filter Pack. from the following link :
Notes:
1- For this release ( Beta Release ), you must install Exchange 2010 into a new Active Directory site.
2- For e-mail messages to flow correctly, you must install both the Mailbox server role and the Hub Transport server role in the same Active Directory site.
3-You can install the Mailbox server role, the Hub Transport server role, the Client Access server role, and the Unified Messaging server role on the same computer or on separate computers.
Exchange 2010 typical Installation Steps :
1- Log on to the server on which you want to install Exchange 2010
2- Insert the Exchange 2010 DVD into the DVD drive (or browse to your install location). If Setup.exe doesn't start automatically, navigate to the DVD drive and double-click Setup.exe.
3- On the Start page, ensure that you have completed Steps 1 through 12.

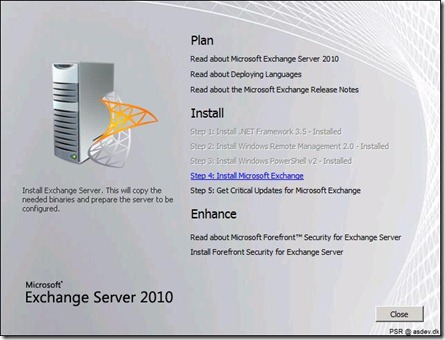

4- On the Start page, click Step 4: Install Microsoft Exchange. Setup copies the setup files locally to the computer on which you are installing Exchange 2010.

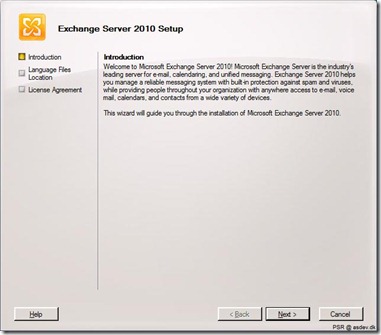

5- In the Exchange 2010 Setup wizard, on the Introduction page, click Next.

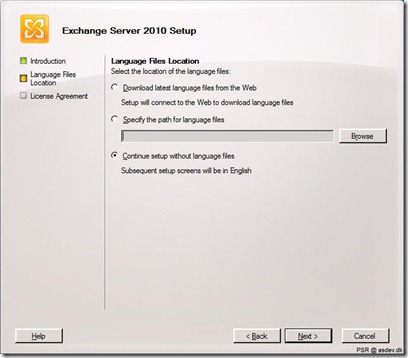

6- On the Language Files Location page, click Next. On the Language Pack Confirmation page, click Next.
7- On the License Agreement page, select I accept the terms in the license agreement, and then click Next.

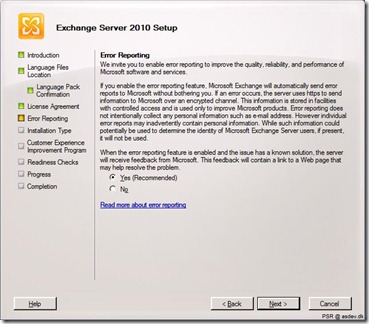

8- On the Error Reporting page, choose Yes, and then click Next.

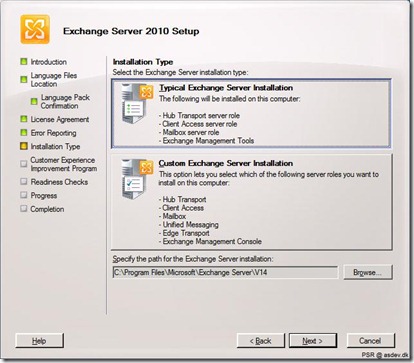

9- On the Installation Type page, click Typical Exchange Server Installation. If you want to change the path for the Exchange 2010 installation, click Browse, locate the appropriate folder in the folder tree, and then click OK. Click Next.
Note:
If you choose the Typical Exchange Server Installation option, you will not be able to install the Unified Messaging server role, Edge Transport server role, or clustered mailbox servers during this installation. You can add additional server roles later if you choose not to install them during this installation.

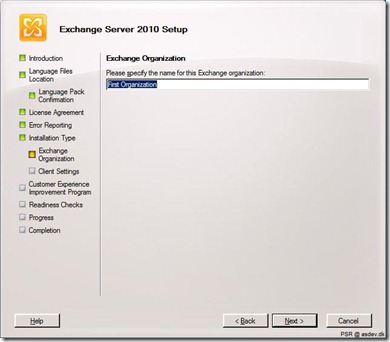

10- If this is the first Exchange 2010 server in your organization, on the Exchange Organization page, type a name for your Exchange organization.

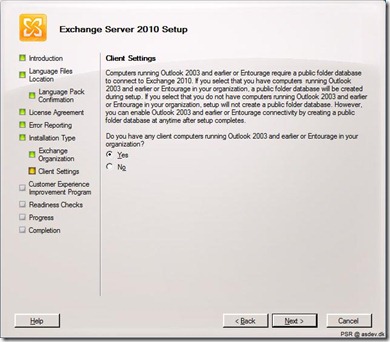

11- If this is the first Exchange 2010 server in your organization, on the Client Settings page, click the option that describes the client computers in your organization that are running Microsoft Office Outlook.
Note:
If you have client computers that are running Outlook 2003 or earlier and you select Yes, Exchange 2010 will create a public folder database on the Mailbox server. If all your client computers are running Outlook 2010, public folders are optional in Exchange 2010. If you select No, Exchange 2010 will not create a public folder database on the Mailbox server. You can add a public folder database later. For example, if you add client computers that are running Outlook 2003 and you need a public folder database, you can create one on the Exchange 2010 Mailbox server. You must then configure the offline address book for public folder distribution, and then restart the Microsoft Exchange Information Store service before client computers that are running Outlook 2003 and earlier will be able to connect to the server.

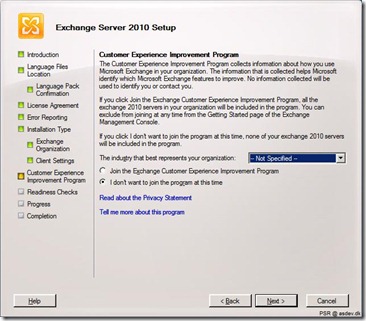

12- On the Customer Experience Improvement page, choose the appropriate selection for your organization, and then click Next.

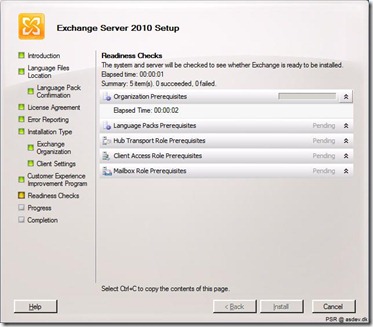

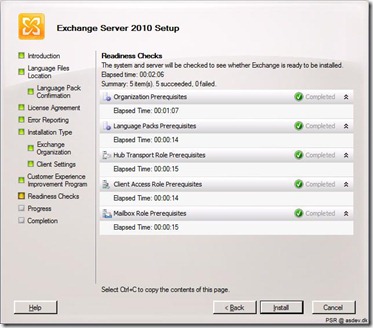

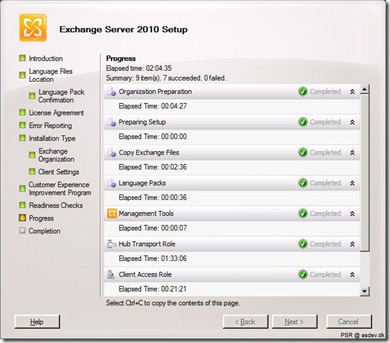

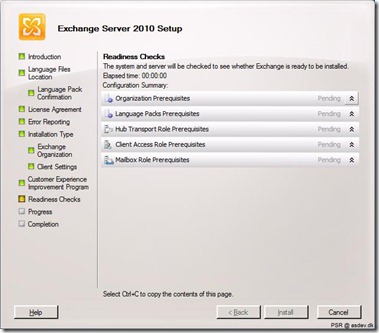

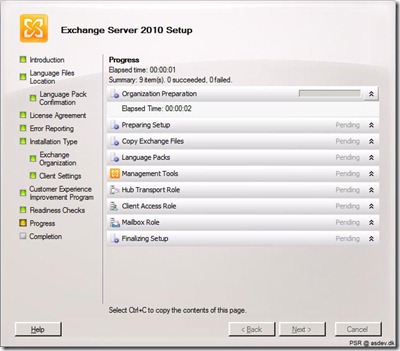

13- On the Readiness Checks page, view the status to determine if the organization and server role prerequisite checks completed successfully. If they have completed successfully, click Install to install Exchange 2010.

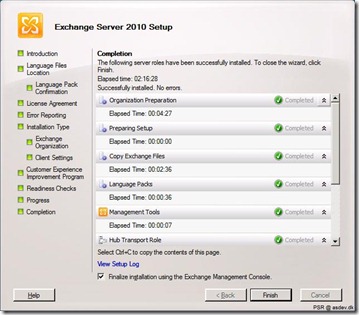

14.On the Completion page, click Finish.

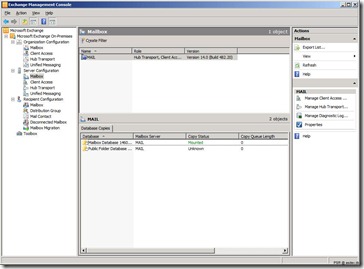

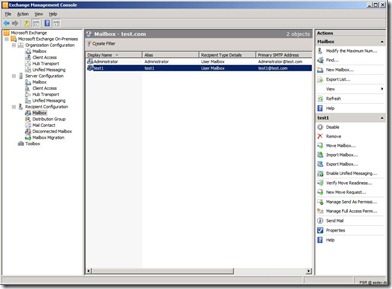

15. now the management console will open and it will look like below

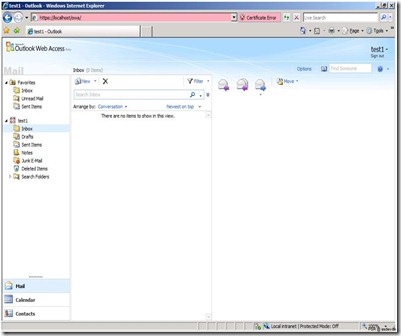

16. open the OWA and it will look like below
==============================================
In this post we finished installing exchange 2010 with typical installation options
In the following post i will talk about how to do basic configurations for the exchange.
Thank you for reading this post and I hope it will help you .
==============================================
